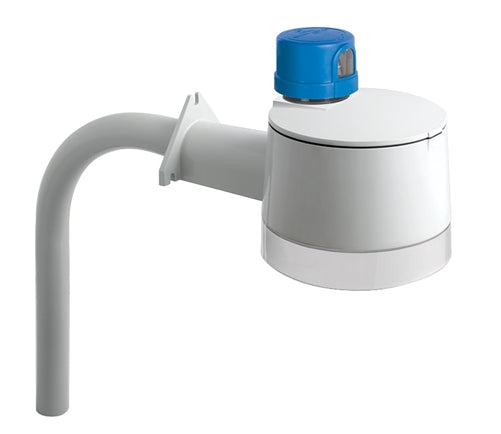

RAB YBLED26/ARM/PCT Yardblaster 26W Cool LED 120V-277V Twistlock Photocell, 5000K Color Temperature, 67 CRI, Pole Mount, Silver Gray Finish
RAB YBLED26/ARM/PCT Yardblaster 26W Cool LED 120V-277V Twistlock Photocell, 5000K Color Temperature, 67 CRI, Pole Mount, Silver Gray Finish
Regular price
Price:
$248.88
Regular price
Price:
Sale price
$248.88
Unit price
per
Ordering a large quantity?Request a quote
description
- High output 26W LED yardblaster delivers enough light to hit the broad side of a barn. Replaces 175W mercury vapor and 150W HPS barn lights. Durable finish withstands harsh environments.
Features & Benefits
Replaces 175W mercury vapor and 150W HPS barn lights Widespread light distribution illuminates large areas Vandal-resistant High-impact polycarbonate lens Rugged die-cast aluminum housing withstands harsh environments Integrated dusk to dawn photocell 100,000-hour LED lifespan
Other
-
YBLED26/ARM with Photocell:
120V-277V twistlock photocell included -
LEDs:
Multi-chip, high-output, long-life LED -
Warranty:
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish.
-
UL Listing:
Suitable for wet locations -
IESNA LM-79 & LM-80 Testing:
RAB LED luminaires have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80, and have received the Department of Energy "Lighting Facts" label. -
DLC Listed:
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
-
Lifespan:
100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations -
Color Stability:
LED color temperature is warrantied to shift no more than 200K in CCT over a 5 year period. -
Color Uniformity:
RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2011.
-
Driver:
Constant Current, 120V, 50/60 Hz, 700mA, 120V: 0.6A -
Power Factor:
99.3% at 120V, 92.5% at 277V -
Surge Protection:
4kV
-
THD:
7.0% at 120V, 10.0% at 277V
-
California Title 24:
YBLED26/ARM complies with 2013 California Title 24 building and electrical codes as a commercial outdoor pole-mounted fixture ≤ 75 Watts as well as a residential outdoor fixture. -
Patents:
The design of YBLED26 is protected by patents pending in US, Canada, China, Taiwan and Mexico.
-
Cold Weather Starting:
Minimum starting temperature is -40°F / -40°C -
Housing:
Precision die-cast aluminum housing and arm -
Mounting:
Mounts on pole -
Effective Projected Area:
EPA = 0.3 -
Recommended Mounting Height:
15 ft. -
Lens:
High-impact, frosted polycarbonate lens -
Reflector:
High-reflectance white paint -
Gaskets:
High-temperature silicone -
Finish:
Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color, and contain no VOC or toxic heavy metals. -
Green Technology:
Mercury and UV free, and RoHS compliant. Polyester powder coat finish formulated without the use of VOC or toxic heavy metals.
-
Replacement:
Replaces 175W mercury vapor and 100-150W HPS barn lights
Download PDF specification Share your knowledge of this product. Be the first to write a review »
