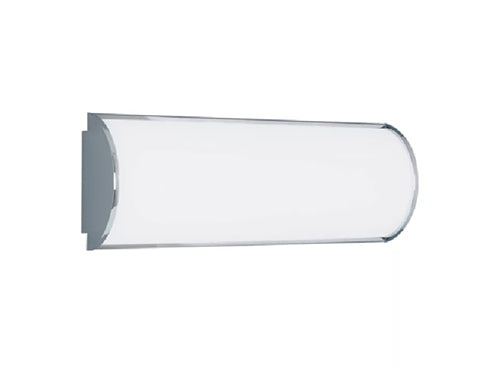

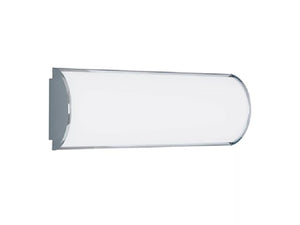

Shaper 605-25-W-L3/835-UNV-MW LED Wall Sconce, 25", Interior Wall, 80 CRI, 3500K, 120-277V, Matte White
Shaper 605-25-W-L3/835-UNV-MW LED Wall Sconce, 25", Interior Wall, 80 CRI, 3500K, 120-277V, Matte White
Regular price
Price:
$1,287.00
Regular price
Price:
Sale price
$1,287.00
Unit price
per
Ordering a Large Quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
Material
Material
Painted solid aluminum with a 1/8” matte white extruded acrylic panel and solid aluminum end caps closed end.
Finishes
ALP (Aluminum Paint)
MW (Matte White)
MB (Matte Black)
GRM (Graphite Metallic)
DP (Dark Platinum)
BM (Bronze Metallic)
CC (Custom Color – Specify
For Custom Color contact us for quotation.
LED

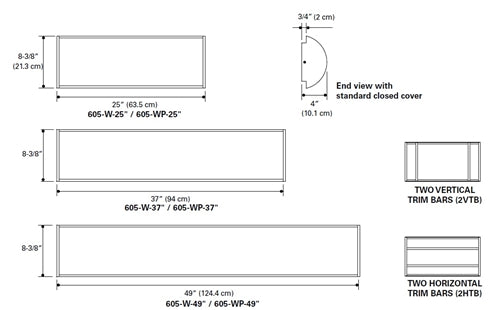

25" L3:2000 (nominal lumens at max) 20W
37" L4:3000 (nominal lumens at max) 29W
49" L5:4000 (nominal lumens at max) 38W
Driver
Standard integral class 2 driver 38W max., 0-10V dimming. LED system coupled with electrical driver to deliver optimal performance. Electronic drivers are available for 120-277V applications.
A 0-10V dimming control is standard on all models.
Installation
Supplied with a universal circle strap for a standard 4" J-box or round or octagonal plaster ring.
Horizontal or vertical mount.
Shaper 605-W luminaires are designed for interior installations only. Shaper 605-WP are listed for wet location. Battery must be remote mounted in an interior location at a 5ft max distance.
Compliance
For W mounting, U.L. and C.U.L approved for indoor and damp location. For WP mounting, U.L. and C.U.L. listed for wet location,
ADA compliant, except with proud trim options.
Options to meet Buy American Act requirements.
Warranty
5 year limited warranty on LED components.
Finishes
ALP (Aluminum Paint)
MW (Matte White)
MB (Matte Black)
GRM (Graphite Metallic)
DP (Dark Platinum)
BM (Bronze Metallic)
CC (Custom Color – Specify
For Custom Color contact us for quotation.
LED
25" L3:2000 (nominal lumens at max) 20W
37" L4:3000 (nominal lumens at max) 29W
49" L5:4000 (nominal lumens at max) 38W
Driver
Standard integral class 2 driver 38W max., 0-10V dimming. LED system coupled with electrical driver to deliver optimal performance. Electronic drivers are available for 120-277V applications.
A 0-10V dimming control is standard on all models.
Installation
Supplied with a universal circle strap for a standard 4" J-box or round or octagonal plaster ring.
Horizontal or vertical mount.
Shaper 605-W luminaires are designed for interior installations only. Shaper 605-WP are listed for wet location. Battery must be remote mounted in an interior location at a 5ft max distance.
Compliance
For W mounting, U.L. and C.U.L approved for indoor and damp location. For WP mounting, U.L. and C.U.L. listed for wet location,
ADA compliant, except with proud trim options.
Options to meet Buy American Act requirements.
Warranty
5 year limited warranty on LED components.
downloads
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
