Home > Halo Lighting > Shaper 673-16-WP-L3/827-UNV-ALP 16" LED Cyclinder Wall Light, Exterior Wall Mounting, 80 CRI, 2700K, 120-277V, Aluminum Paint

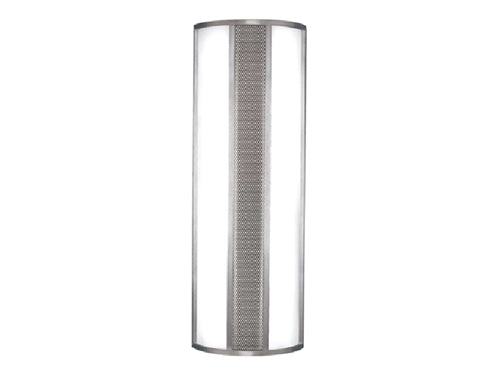

Shaper 673-16-WP-L3/827-UNV-ALP 16" LED Cyclinder Wall Light, Exterior Wall Mounting, 80 CRI, 2700K, 120-277V, Aluminum Paint
Shaper 673-16-WP-L3/827-UNV-ALP 16" LED Cyclinder Wall Light, Exterior Wall Mounting, 80 CRI, 2700K, 120-277V, Aluminum Paint
Regular price
Price:
$1,141.80
Regular price
Price:
Sale price
$1,141.80
Unit price
per
Ordering a Large Quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
Material
Material
Painted or plated solid aluminum with a 1/8” matte white extruded acrylic panel, open top and bottom end caps, with acrylic inserts.
Luminous top and bottom for LED.
Finishes
ALP (Aluminum Paint)
MW (Matte White)
MB (Matte Black)
GRM (Graphite Metallic)
DP (Dark Platinum)
BM (Bronze Metallic)
CC (Custom Color – Specify)
For Custom Color Electric Bargain Store for quotation.
LED
16”: L3:2000 nominal lumens at max 20W
25”: L3:2000 nominal lumens at max 20W
37”: L4:3000 nominal lumens at max 29W
Driver
LED system coupled with electronic driver to deliver optimal performance. Electronic drivers are available for 120-277V applications.
A 0-10V dimming control is standard on all models. Standard integral class 2 driver 29W max., 0-10V dimming.
Installation
Supplied with a universal circle strap for a standard 4” J-box or round or octagonal plaster ring.
Horizontal or vertical mount.
Shaper 673-W luminaires are designed for interior installations only. Shaper 673-WP are listed for wet location. Battery must be remote mounted in an interior location at a 5ft max distance.
Compliance
Shaper 673-W is U.L. and C.U.L approved for indoor and damp location. Shaper 673-WP is listed for wet location. ADA compliant, except with proud trim options.
Warranty
5 year limited warranty on LED components.
Luminous top and bottom for LED.
Finishes
ALP (Aluminum Paint)
MW (Matte White)
MB (Matte Black)
GRM (Graphite Metallic)
DP (Dark Platinum)
BM (Bronze Metallic)
CC (Custom Color – Specify)
For Custom Color Electric Bargain Store for quotation.
LED
16”: L3:2000 nominal lumens at max 20W
25”: L3:2000 nominal lumens at max 20W
37”: L4:3000 nominal lumens at max 29W
Driver
LED system coupled with electronic driver to deliver optimal performance. Electronic drivers are available for 120-277V applications.
A 0-10V dimming control is standard on all models. Standard integral class 2 driver 29W max., 0-10V dimming.
Installation
Supplied with a universal circle strap for a standard 4” J-box or round or octagonal plaster ring.
Horizontal or vertical mount.
Shaper 673-W luminaires are designed for interior installations only. Shaper 673-WP are listed for wet location. Battery must be remote mounted in an interior location at a 5ft max distance.
Compliance
Shaper 673-W is U.L. and C.U.L approved for indoor and damp location. Shaper 673-WP is listed for wet location. ADA compliant, except with proud trim options.
Warranty
5 year limited warranty on LED components.
