• Silver Bullet T24M 1077UL 4BP 2A1 3A2 4A1 SM Standard Current Limiting Breaker Panel, Standard UL Listed, 4 Breaker Positions, 4 Amp Breaker, Surface Mount
1 1

Silver Bullet T24M 1077UL 4BP 2A1 3A2 4A1 SM Standard Current Limiting Breaker Panel, Standard UL Listed, 4 Breaker Positions, 4 Amp Breaker, Surface Mount

Silver Bullet T24M 1077UL 4BP 2A1 3A2 4A1 SM Standard Current Limiting Breaker Panel, Standard UL Listed, 4 Breaker Positions, 4 Amp Breaker, Surface Mount

Price: $1,469.08
Price: $1,469.08

MODEL: SilverBullet-T24M-110808

Usually Ships in 3-5 business days. Urgent Project? Contact Us
Add To Wishlist
Request a Quote
Ordering a large quantity?Request a quote
View full details

description

PRODUCT FAMILY DESCRIPTION

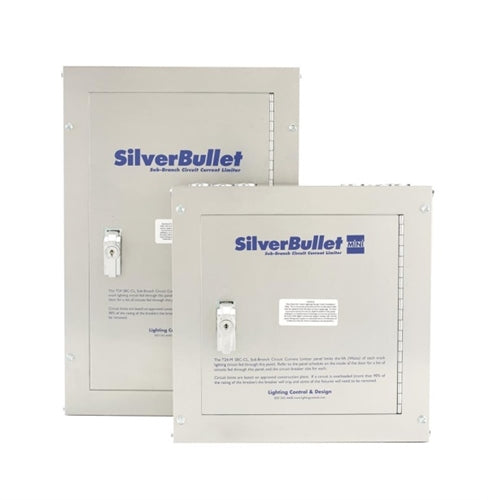

The SilverBullet is a “sub-branch circuit current limiter" for track lighting that enforces a definite current limit to lower the VA rating of each track lighting circuit and meet code requirements.

PRODUCT FAMILY FEATURES
  • Current limiting for up to 21 circuits
  • Current limiting breakers available from 1A-15A
  • Compact sizes 12" W X 18"H X 4"D or 12"W X 12"H X 4"D
  • AIC rating of 10,000A @ 120V - 277V
  • Factory pre-assembled with each load factory labeled on the door sheet

PRODUCT FAMILY SPECIFICATIONS
  • Enclosure dimensions:
    • 1-12 breakers, 12"W x 12"H x 4"D
    • 6-21 breakers, 12"W x 18"H x 4"D
  • Enclosure type: Surface mount, hinged locking door, NEMA 1
  • Optional enclosures: Flush mount
  • Max. humidity: 10–90% non-condensing
  • Ambient temperature: 32–104° F (0–40° C) (Note: Thermal magnetic breakers. De-rate to 80% of load for temperatures over 70° F)
  • Listings: C-UL-US Listed
