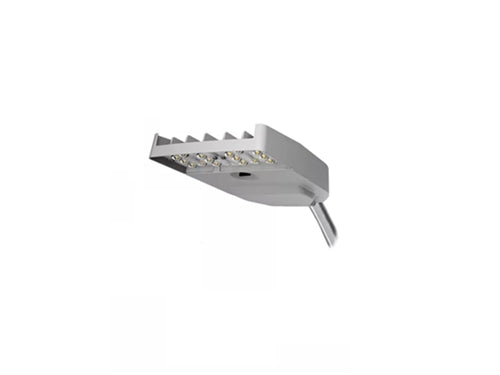

Streetworks ARCH2-80-740-U-T4W-AP-10K 80W Archeon Contemporary Size 2 Roadway Light, 70 CRI, 4000K, 120-277V, Type IV Wide Distribution, Grey Finish, Series 10kV UL 1449 Surge Protection Device
Streetworks ARCH2-80-740-U-T4W-AP-10K 80W Archeon Contemporary Size 2 Roadway Light, 70 CRI, 4000K, 120-277V, Type IV Wide Distribution, Grey Finish, Series 10kV UL 1449 Surge Protection Device
Regular price
Price:
$311.85
Regular price
Price:
Sale price
$311.85
Unit price
per
Ordering a Large Quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
OPTICAL
Five-year limited warranty.
OPTICAL
- 5 patented AccuLED high efficiency roadway and area optical distributions
- 7 color temperature options » 70 CRI: 2200K, 2700K, 3000K, 4000K, 5000K » Amber: wildlife-friendly and observatory applications
- 2 versions of field-installable shielding for superior spill light control » Single-piece snap-on square shields » Multiple-piece configurable vertical perimeter shielding
- 120-277V, 240-480V, 347V, and 480V; 50/60Hz
- Standard 0-10V dimming
- 10kV and 20kV surge protection options with series or parallel configurations
- -40ºC to 40ºC ambient temperature operating range
- Standard 3-position terminal block
- Heavy duty die-cast aluminum housing and door
- Lineman-friendly features standard for easy maintenance. Includes tool-less entry and 3-position terminal block with easy access for service wires
- Housing finished in 5-stage super TGIC polyester powder coat paint, 2.5 mil nominal thickness
- 5 standard color options. RAL and custom colors also available. Additional charges and lead time apply
- Two-bolt slipfitter with cast-in pipe stop and 2.5º leveling steps
- Stamped metal birdguard seals entry for 1-1/4” to 2” (1-5/8” to 2-3/8” OD) mounting arms
- Standard ANSI C136.41 7-pin receptacle for photocells or Networked Lighting Control (NLC) modules
- Optional Field Adjustable Dimming Control (FADC) module allows for manual adjustment of lumen output and power usage; factory preset to highest output level. Enables a single SKU to cover multiple field applications
- Optional 4-pin Zhaga Book 18 receptacle for integration of onboard sensors with DALI- and D4i-enabled drivers
- Fully compatible with CLS Trellix Infrastructure UNB (Ultra Narrow Band) and cellular network lighting controls platforms. Enables wireless collection of luminaire performance and status data and asset management for luminaires installed in the field
- Meets ANSI C136.25 for IP66 Optical enclosure rating
- Meets ANSI C136.31 for 3G luminaire vibration. Customer is responsible for engineering analysis to confirm pole and fixture compatibility for all applications
- Meets ANSI C136.15 for luminaire field identification label standard
- Meets ANSI C136.22 internal label standard
- Safety listing - Wet Location UL 1598
- 3,000-hours per ASTM B117, with a scribe rating of 7 per ASTM D1654 for standard color finish
- DarkSky approved for 3000K CCT and warmer, with mounting options less than 10° of tilt
- DLC and DLC Premium listed- visit designlights.org to confirm listed variations
- BAA domestic preference option meets BAA requirements
- Products that meet BABA Domestic Preference Requirements - This Cooper product is manufactured in the US and meets the BABA cost of components rule. To verify a configured product with specific accessories and options meets BABA Domestic Preference Requirements; submit this catalog number to Cooper Lighting Quotation team for validation by our Engineering and Manufacturing teams. Our BABA designation is based on the minimum compliance requirement for BABA. Individual Government Agencies may have more stringent compliance standards.
- Products that meet BABA through Exemption - Allows any product to satisfy BABA requirements regardless of domestic content manufacturing for projects funded by FHWA through Oct 1st 2025. See notes portion in Ordering Information section for more detail.
- Products that meet BABA through BAA Exemption - FHWA and FTA agencies are utilizing their BAA rules for BABA compliance. Cooper’s products with a BAA designation are manufactured in the US and utilize a BAA COTS exemption rule for compliance. To verify a configured product with specific accessories and options meet BABA Domestic Preference Requirements; submit this catalog number to Cooper Lighting Quotation team for validation by our Engineering and Manufacturing teams. See notes portion in Ordering Information section for more detail.
- Please refer to the DOMESTIC PREFERENCES website or consult the CLS Domestic Preferences team for more information. Components shipped separately may be separately analyzed under domestic preference requirements.
Five-year limited warranty.
