Home > Halo Lighting > Streetworks GLAN-SA2C-740-U-T3-RAL7001-20K Galleon II LED Area Light, 16 LEDs, 2 Light Squares, Lumen Output 3, 70 CRI, 4000K, 120-277V, Type III Distribution, Standard Pole Mounting, Custom Color 7001, 20kV UL 1449 Fused Surge Protective Device

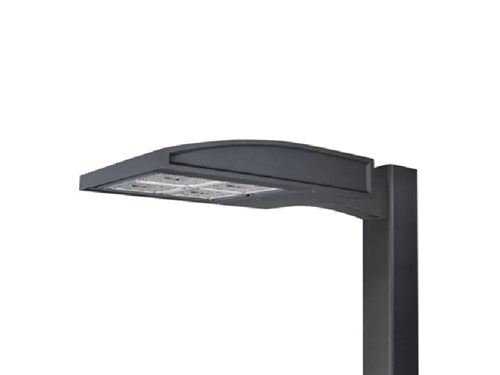

Streetworks GLAN-SA2C-740-U-T3-RAL7001-20K Galleon II LED Area Light, 16 LEDs, 2 Light Squares, Lumen Output 3, 70 CRI, 4000K, 120-277V, Type III Distribution, Standard Pole Mounting, Custom Color 7001, 20kV UL 1449 Fused Surge Protective Device
Streetworks GLAN-SA2C-740-U-T3-RAL7001-20K Galleon II LED Area Light, 16 LEDs, 2 Light Squares, Lumen Output 3, 70 CRI, 4000K, 120-277V, Type III Distribution, Standard Pole Mounting, Custom Color 7001, 20kV UL 1449 Fused Surge Protective Device
Regular price
Price:
$1,476.77
Regular price
Price:
Sale price
$1,476.77
Unit price
per
Ordering a Large Quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
Construction
Construction
- Die-cast aluminum housing and heat sink
- Three housing sizes, using 1 to 9 light squares
- Driver compartment utilizes hinged door with captive fasteners
- High-efficiency injection-molded AccuLED Optics technology
- 17 optical distributions for area site and roadway applications
- 3 shielding options include HSS, GRS and PFS
- IDA certified (3000K CCT and warmer only, arms at 0° tilt)
- Removable power tray assembly includes drivers, surge modules and control modules for ease of maintenance and serviceability
- Standard with 0-10V dimming
- Standard with 10kV surge module, optional 20kV surge module
- Suitable for operation in -40°C to 40°C ambient environments. Optional 50°C high ambient (HA) configuration
- Arms are factory installed, enabling closed-housing installation
- All arms suitable for round or square pole installation
- All arms provide clearance for multiple fixture installations at 90°
- 6 standard finishes use super durable TGIC polyester powder coat paint, providing 2.5 mil nominal thickness and salt-spray tested to 3,000 hours per ASTM B117
- RAL and custom color matches available
- Coastal Construction (CC) option salt-spray tested to 5,000 hours per ASTM B117, achieving a scribe rating of 9 per ASTM D1654
- Outdoor, Parking Lots, Walkways, Roadways
- Five year limited warranty
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
