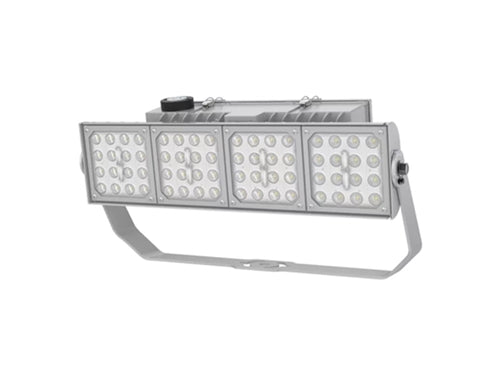

Streetworks IFLD-M-SA4-C-940-U-44-Y-WH Infrastructure Flood, 4 Squares Light Engine, 1000mA, 90 CRI, 4000K, 120-277V, NEMA 4H x 4V 4, Yoke Mounting, White

Streetworks IFLD-M-SA4-C-940-U-44-Y-WH Infrastructure Flood, 4 Squares Light Engine, 1000mA, 90 CRI, 4000K, 120-277V, NEMA 4H x 4V 4, Yoke Mounting, White

Price: $1,212.75
Price: $1,212.75

MODEL: Streetworks-IFLD-1509
Add To Wishlist
Request a Quote
Ordering a Large Quantity? Request a quote
View full details

description

PRODUCT FAMILY SPECIFICATIONS
Construction
  • Heavy-duty Die cast aluminum housing, door, and heat sink
  • A separate driver compartment and external fins provide optimal thermal management that result in longer LED and driver life
  • 3 housing sizes (Small, Medium, and Large) ranging from 2 to 8 squares
  • The housing, optical chamber and driver compartment are IP66 rated
  • Access to the driver for maintenance is achieved with a removable driver door
  • The fixture is optional 3G vibration rated (ANSI C136.31) to ensure durability in area and site lighting applications

Optics
  • High-efficiency injection-molded AccuLED Optics technology
  • 20 optical distributions for flood, area site, and roadway applications
  • Optics are precisely designed to shape the NEMA type flood distributions, maximizing efficiency and application spacing
  • Louver shields, vandal shields, visors, and wire guard accessories available
  • Various CCTs available, 2200K, 2700K, 3000K, 3500K, 4000K, 5000K, 5700K, and 590nm amber
  • CCTs offered in 70 or 80 CRI for roadway optics and 90CRI for NEMA flood optics
  • IDA Certified for 3000K CCT and warmer only

Electrical
  • 120-277V 50/60Hz, 347V 60Hz or 480V 60Hz operation
  • 10kV and 20kV surge or parallel surge protection options available
  • 0-10V dimming driver is standard to accommodate controls capability such as dimming and occupancy
  • Available with 3-PIN or 7-PIN NEMA photocontrol receptacles
  • Suitable for ambient temperatures from -40°C to 40°C; Optional 50°C HA (high ambient) available
  • Luminaire available with the field adjustable dimming controller (FADC) to manually adjust wattage and reduce the total lumen output and light levels; Comes pre-set to the highest position at the lumen output selected

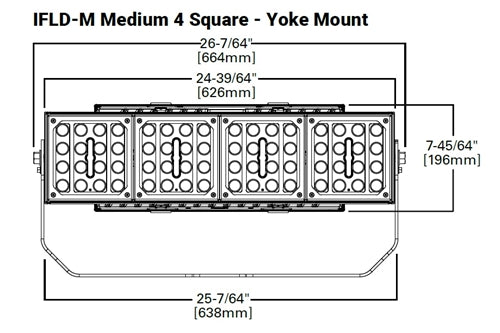

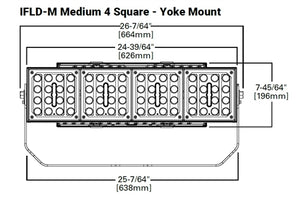

Mounting
  • Mounting options include an integral die-cast aluminum slipfitter, galvanized steel yoke, and pendant mount (pendant supplied by others)
  • The slipfitter fits standard 3” O.D. tenon.
  • SRA238 adapter available for 2-3/8" OD applications
  • The yoke mounting includes a polyester powder coated galvanized steel yoke with a 16/3 STW-A cord
  • The yoke mount uses an interlocking slide adjustment that is locked in place with a set screw

Finish
  • Housing and cast parts finished in five-stage super TGIC polyester powder coat paint, 2.5 mil nominal thickness for superior protection against fade and wear
  • Coastal construction finish option available
