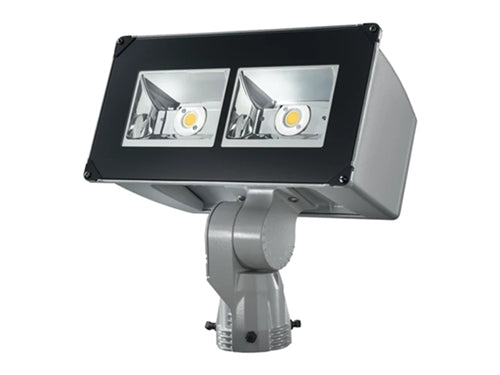

Cooper Streetworkds UFLD-CA2-180-740-U-66-T-AP-10K-PR7 180W LED Flood Light, 2 LED, 70 CRI, 4000K, 120-277V, NEMA 6H x 6V Wide, Trunnion Mounting, Grey, Series 10kV UL 1449 Surge Protective Device, NEMA 7-PIN Twistlock Photocontrol

Cooper Streetworkds UFLD-CA2-180-740-U-66-T-AP-10K-PR7 180W LED Flood Light, 2 LED, 70 CRI, 4000K, 120-277V, NEMA 6H x 6V Wide, Trunnion Mounting, Grey, Series 10kV UL 1449 Surge Protective Device, NEMA 7-PIN Twistlock Photocontrol

Price: $1,229.25
Price: $1,229.25

MODEL: Streetworks-UFLD-1536
Add To Wishlist
Request a Quote
Ordering a Large Quantity? Request a quote
View full details

description

PRODUCT FAMILY SPECIFICATIONS
Optics
  • The LED chamber incorporates a vacuum metalized reflector that provides high-efficiency illumination.
  • Optics are precisely designed to shape the NEMA type 6H x 6V wide distribution and 3H x 3V spot distribution, maximizing efficiency and application spacing.
  • Clear glass tempered lens with full circumference form-in-place silicone gasket protects the optics from damage.
  • Various CCTs available, offered in 2200K, 2700K, 3000K, 4000K, 5000K, or 5700K and minimum 70 CRI.
Electrical
  • LED driver is mounted to the removable die-cast aluminum door for optimal heat sinking and ease of maintenance.
  • 120-277V, 240-480V, 347V, and 480V; 50/60Hz
  • Standard 0-10V dimming
  • Integral 6kV surge is standard. 10kV surge protection options with series or parallel configurations
  • -40 degreesC to 40 degreesC ambient temperature operating range. Optional 50 degreesC HA (high ambient) available.
Physical Characteristics
  • Heavy-duty, die cast aluminum housing, driver compartment and driver door.
  • A separate driver compartment and external fins provide optimal thermal management that result in longer LED and driver life.
  • Access to the driver for maintenance is achieved with a removable driver door using pan head screws.
  • A one-piece silicone gasket seals the door to the fixture housing.
  • Housing and cast parts finished in five-stage super TGIC polyester powder coat paint, 2.5 mil nominal thickness for superior protection against fade and wear.
  • Heavy-duty steel top and side visors control glare and spill light. 1/8" thick UV stabilized vandal guard shields glass lens from impact when mounted at low levels.
  • Easy to install wire guard features a heavy-gauge welded construction with corrosion resistant polyester powder coat finish to protect glass from projected objects.
Controls
  • Optional Field Adjustable Dimming Control (FADC) module allows for manual adjustment of lumen output and power usage; factory preset to highest output level. Enables a single SKU to cover multiple field applications
Mounting
  • Mounting options include an integral die-cast aluminum slipfitter that is preset to a tilt of 45 degrees.
  • The knuckle base is supplied with a tooth lock adjustment that can be adjusted in 5 degrees increments. Visual 15 degrees adjustment indicators on the knuckle allow for 180 degrees field rotation of the floodlight assembly.
  • The slipfitter fits standard 2-3/8"-3" O.D. tenon.

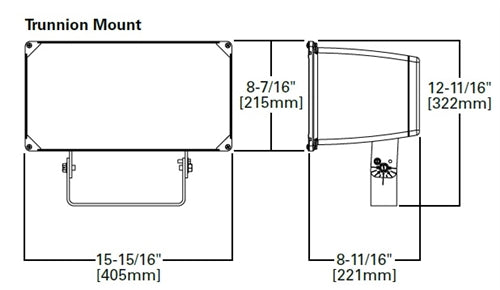

  • The trunnion mounting includes a 3/16" polyester powder coated galvanized steel trunnion with a 16/3 STW-A cord.
  • The trunnion mount uses an interlocking slide adjustment that is locked in place with a set screw.
Finish
  • Housing and cast parts finished in five-stage super TGIC polyester powder coat paint, 2.5 mil nominal thickness for superior protection against fade and wear.

Compliance
  • The housing, optical chamber and driver compartment are IP66 rated.
  • Meets ANSI C136.31 for 3G luminaire vibration. Customer is responsible for engineering analysis to confirm pole and fixture compatibility for all applications. Suitable for mounting within 4’ (1.2m) of the ground.
  • BAA domestic preference option meets BAA requirements. See DOMESTIC PREFERENCES website or consult the CLS Domestic Preferences team for more information
  • FHWA and FTA agencies are utilizing their BAA rules for BABA compliance. Cooper’s products with a BAA designation are manufactured in the US and utilize a BAA COTS exemption rule for compliance. To verify a configured product with specific accessories and options meet BABA Domestic Preference Requirements; submit this catalog number to Cooper Lighting Quotation team for validation by our Engineering and Manufacturing teams. Please refer to the DOMESTIC PREFERENCES website or consult the CLS Domestic Preferences team for more information. Components shipped separately may be separately analyzed under domestic preference requirements.
Shipping Data
  • Approximate net weight: 20 lbs. (9.09 kgs.)
  • EPA: 1.25 sq. ft.
Warranty
  • Five-year limited warranty
