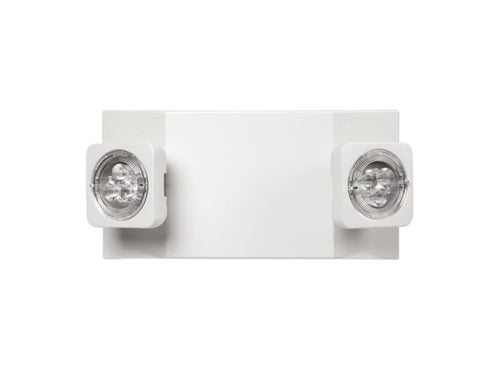

Sure Lites AP2SQLED30 1.5W All Pro LED Emergency Light, Nickel Cadmium Battery, Two Square Heads
Sure Lites AP2SQLED30 1.5W All Pro LED Emergency Light, Nickel Cadmium Battery, Two Square Heads
Regular price
Price:
$29.98
Regular price
Price:
Sale price
$29.98
Unit price
per
Ordering a large quantity?
Request a quote
description
PRODUCT DESCRIPTION
The AP2SQLED30 is an UL 924 listed emergency light with a minimum of 90 minutes of run time and 30 feet of emergency egress coverage. Key features include square LED heads, a no maintenance nickel cadmium battery and a five year fixture warranty. The square LED heads are fully adjustable to maximize design flexibility. The universal j-box mounting pattern and snap fit housing construction significantly reduce installation time.
PRODUCT SPECIFICATIONS
LED Heads
The AP2SQLED30 is an UL 924 listed emergency light with a minimum of 90 minutes of run time and 30 feet of emergency egress coverage. Key features include square LED heads, a no maintenance nickel cadmium battery and a five year fixture warranty. The square LED heads are fully adjustable to maximize design flexibility. The universal j-box mounting pattern and snap fit housing construction significantly reduce installation time.
PRODUCT SPECIFICATIONS
LED Heads
- Horizontal and vertical rotatable, fully adjustable
- 3.6V, 1.5W DC LED heads
Housing Construction
- Rugged, durable, injection molded thermoplastic materials
- Structural components designed with reinforcing ribs for additional rigidity and structural integrity
- Impact and scratch resistant
- UV stabilized to resist discoloration due to age and ultraviolet radiation
- Snap-fit construction (no mechanical fasteners) to facilitate installation in under five minutes
- Mounting plate’s keyhole mounting slots and universal mounting pattern provides quick, efficient installation
- Installation components included (wire nuts, wire leads, etc.)
- Wall or ceiling mounting
- Housing color available in white
Line-Latched
- Line-latched electronic circuitry for easy and economical installation
- Line-latching eliminates contractor’s return to site to connect the batteries when the building’s main power is turned on
- Labor efficient AC activated load switch prevents lamps from turning on during installation to a nonenergized AC circuit
Solid-State Charger
- 120/277 VAC, voltage regulated solid-state charger
- High charge rate immediately following power restoration of AC current after a power failure
- Charge circuit reacts to the condition of the battery and regulates the charging process in order to maintain peak battery capacity and maximize battery life
- Solid-state construction recharges the battery following a power failure in accordance with UL 924
- Monitors the flow of AC current
- Activates the emergency lighting system when a predetermined reduction/dip of AC power occurs (a dip in voltage will cause most ballasted products to extinguish, causing loss of normal lighting even though a total power failure has not occurred)
- Low-voltage circuitry disconnects the lighting load when battery’s terminal voltage falls
- Disconnect remains in effect until normal utility power is restored, preventing deep battery discharge
Test Switch/Power Indicator Light
- Switch permits the activation of the emergency circuit for complete operational systems check
- Indicator light provides visual assurance that the AC power is on
Sealed Nickel Cadmium Battery
- Sealed, maintenance-free nickel cadmium battery with 10-year life expectancy
- Rechargeable battery offers high discharge rates and stable performance over a wide range of temperatures
Limited Warranty
- Five-year limited warranty against defects in material and workmanship
- Nickel cadmium battery has a seven-year prorated warranty
