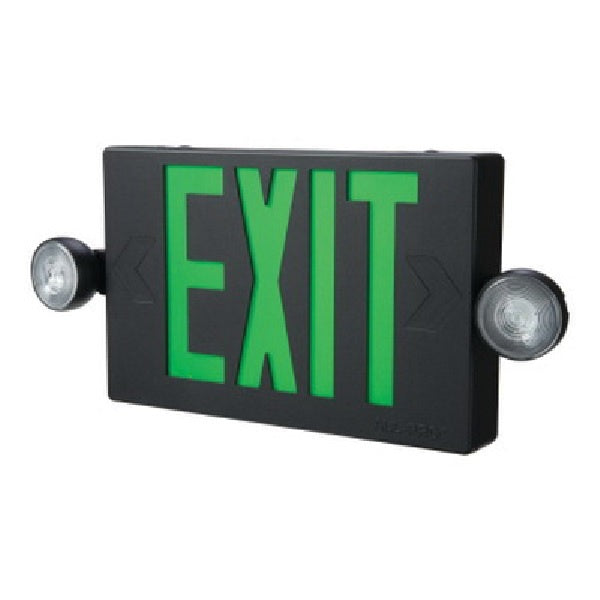

Sure Lites APCH7GBK Polycarbonate LED Combo Exit and Emergency Light, AC Only Self Powered, Two 3.6V LED Heads, Nickel Cadmium Battery, Universal Face, Green Letters, Black Housing
Sure Lites APCH7GBK Polycarbonate LED Combo Exit and Emergency Light, AC Only Self Powered, Two 3.6V LED Heads, Nickel Cadmium Battery, Universal Face, Green Letters, Black Housing
Regular price
Price:
$69.17
Regular price
Price:
Sale price
$69.17
Unit price
per
MODEL: Sure-Lites-APCH7GBK
Usually Ships in 4-6 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT SPECIFICATIONS
Illumination Source Data
Illumination Source Data
- Long life LEDs provide uniform, diffuse illumination for the EXIT face
- RG models have field selectable red or green LEDs
- LED sources are brighter in emergency mode
- 3.6V, 0.78W Long life LED heads provide up to 17 feet egress coverage
Electrical
- Dual voltage input 120/277VAC, 60Hz
- 3.6V, 0.78W DC long lasting LED heads
- Line-latching
- Solid-state voltage limited charger
- Solid-state switching
- Brownout protection
- Low voltage disconnect
- Overload/short circuit protection
- Test switch / power indicator light
- High power remote option available capable of running two additional APWR 3.6V, 0.78W remote emergency lights
Housing Construction
- All components are injection molded, color stable, high impact, 5VA flame resistant, thermoplastic housing
- UV stabilized to resist discoloration due to age and ultraviolet radiation
- APC7RG/APCH7RG series LEDs and lens panels are field selectable red or green. APC7RG/APCH7RG series come with LEDs set to “red” with red inserts installed. The APC7RG/APCH7RG series and can be easily converted to "green" LEDs and inserts in the field.
- Available in white or black textured finish
- Components are of snap-fit construction to facilitate under 5-minute installation
- Reinforcing ribs throughout to provide maximum strength connections
- Molded-in wireways facilitate internal wire routing and connections
- All components including battery and electronics are located inside the exit housing
- Snap-out or snap-in chevron directional indicators have full 3/4" stroke
- Universal exits can be field configured as single face or double face
- Snap-fit canopy with mounting screws included with all exits
- Exit can be ceiling, wall, or end mounted
- Universal J-box mounting pattern
- Operating temperature range 10°C to 40°C Solid-State Charger
- 120/277 VAC, voltage regulated solid-state charger
- High charge rate immediately following power restoration of AC current after a power failure
- Charge circuit reacts to the condition of the battery and regulates the charging process in order to maintain peak battery capacity and maximize battery life
- Solid-state construction recharges the battery following a power failure in accordance with UL 924
Brownout Circuit
- Monitors the flow of AC current
- Activates the emergency lighting system when a predetermined reduction/dip of AC power occurs (a dip in voltage will cause most ballasted products to extinguish, causing loss of normal lighting even though a total power failure has not occurred)
- Switch located on the bottom of the exit permits the activation of the emergency circuit for complete operational systems check
- Indicator light provides visual assurance that the AC power is on
Line-Latched
- AC activated load switch prevents lamps from turning on during installation to a non-energized AC circuit
- Eliminates need of contractor to return to job site to connect batteries when building's main power is turned on
- Disconnects lighting load when battery terminal voltage falls
- Disconnect remains in effect until normal AC power is restored
- Prevents deep battery discharge, which provides for longer battery life
Battery
- Sealed nickel cadmium
- Maintenance free, long life
- Full recharge time: 24 hrs (max.)
Code Compliance
- UL 924 Listed
- UL Damp Location Listed
- Life Safety NFPA 101
- NEC/OSHA
- California Energy Code compliant
Limited Warranty
- Five-year limited warranty
- Seven-year prorated battery limited warranty
