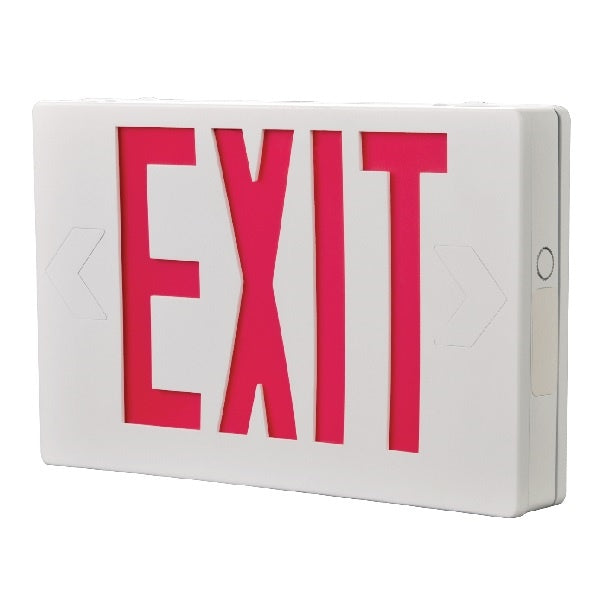

Sure Lites APX7R Thermoplastic LED Exit and Emergency Light, Nickel Cadmium Battery, Red Letters, White Housing
Sure Lites APX7R Thermoplastic LED Exit and Emergency Light, Nickel Cadmium Battery, Red Letters, White Housing
Regular price
Price:
$19.80
Regular price
Price:
Sale price
$19.80
Unit price
per
MODEL: Sure-Lites-APX7R
Usually Ships in 4-6 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT DESCRIPTION
The LED APX series is UL924 code compliant solution for indoor exit requirements. It is available as AC only (APX6) or self-powered (APX7)
The LED APX series is UL924 code compliant solution for indoor exit requirements. It is available as AC only (APX6) or self-powered (APX7)
with a maintenance free nickel cadmium battery. The self-powered version will operate for a minimum of 90 minutes during a power outage. All models feature an LED source available in red or green, are field configurable for single or double face and are universal mount (ceiling, wall or end). The polycarbonate housing is available in white or black.
PRODUCT SPECIFICATIONS
Electrical
Housing ConstructionPRODUCT SPECIFICATIONS
Electrical
- Dual voltage input 120/277 VAC, 60Hz
- Solid-State voltage limited charger (APX7)
- Brownout circuit (APX7)
- Test switch / Power indicator light (APX7)
- All components are injection molded, color stable, high impact thermoplastic material
- Available in a white or black finish
- Components are of snap-fit construction to facilitate under 5-minute installation
- Reinforcing ribs throughout to provide maximum strength connections
- All components including battery and electronics are located inside the exit housing
- Snap-out or snap-in chevron directional indicators have full 3/4" stroke
- Universal exits can be field configured as single face or double face
- Snap-fit canopy with mounting screws included with all exits
- Exit can be ceiling, wall, or end mounted
- Universal J-box mounting pattern
- Operating temperature range 10 degree C to 40 degree C
- Sealed nickel cadmium
- Maintenance free, long life
- Full recharge time: 24 hrs (max.)
- UL 924 Listed
- UL Damp Location Listed
- Life Safety NFPA 101
- NEC/OSHA
- Most State and Local Codes
- operatig temperature range 10 degree C to 40 degree C
- California Energy Code compliant
- AC LED: Long life LED lamps provide uniform diffused illumination
- DC: LED DC lamps (Brighter in emergency mode, APX7)
- Five-year warranty
- Seven-year prorated battery warranty
downloads
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
