Sure Lites CHXC71 Steel LED Emergency Light Exit Sign Combo, Self-Powered, Single Face, No Arrow

Sure Lites CHXC71 Steel LED Emergency Light Exit Sign Combo, Self-Powered, Single Face, No Arrow

Price: $180.55
Price: $180.55

MODEL: Sure-Lites-CHXC71

Usually Ships in 4-6 business days. Urgent Project? Contact Us
Add To Wishlist
Request a Quote
Ordering a large quantity?Request a quote
View full details

description

PRODUCT DESCRIPTION

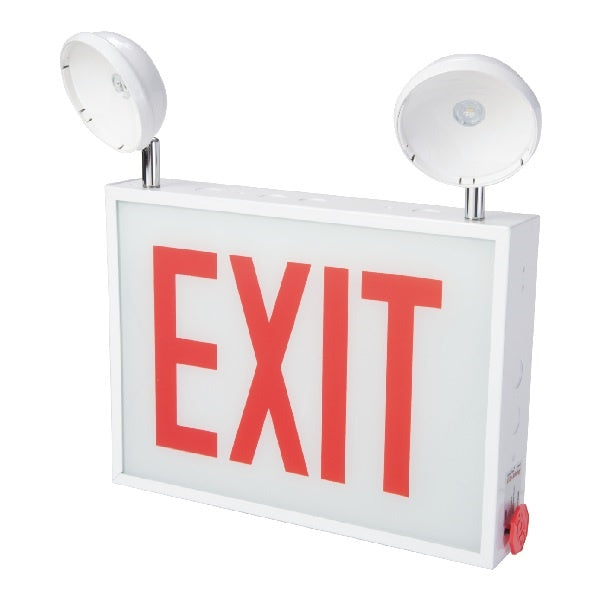

The SureLites LED combo series is a Chicago approved and UL924 code compliant solution for Exit and Emergency needs. The Exit consists of
a steel housing with a glass lens and long life white LED’s. The fixture can be end or back mounted to a junction box, mounted to a pendant or to conduit. Two 300 lumen LED emergency lights powered by a nickel cadmium battery for 90 minutes of run time are mounted to the top of the fixture. The fully adjustable LED heads provide up to 60 feet of emergency egress coverage.
PRODUCT SPECIFICATIONS
Electronic
  • Universal Voltage Input 120-277 VAC, 50-60 Hz
  • EZ Key External Battery Disconnect
  • Field selectable voltage for brownout circuit
  • Solid-state Voltage Limited Charger
  • Low-Voltage Disconnect-Overload/Short Circuit Protection
  • Test Switch/Power Indicator Light
Battery
  • Sealed Nickel Cadmium for Exit and Emergency
  • Full Recharge Time, 24 hrs. (max.)
  • Single Battery powers both Exit Sign and Emergency Heads
Housing Construction
  • 20-gauge steel housing
  • White Finish
  • Universal pattern knockouts on rear for direct mounting to junction box
  • Knockouts for conduit, pendant, top mount and end mount are standard
  • Red silk-screened lettering on white, heat tempered, impact resistant glass lens
  • Other open face lenses available- consult Cooper
Lighting Soutions representative
- Lens installs from side of
fixture for more convenient, safe
maintenance
Code Compliance
- UL 924 Listed
- Life Safety NFPA 101
- NEC/OSHA
- City of Chicago Fire Code
Warranty
- Unit: 5-year
- Nickel Cadmium Battery: 7-year
pro-rata
Lamp Data
- Two fully adjustable 300 Lumen
Heads
- Sign Face – High Brightness
White LEDs
