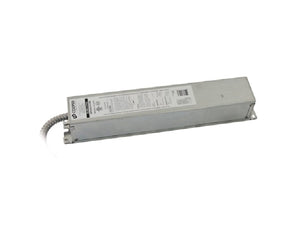

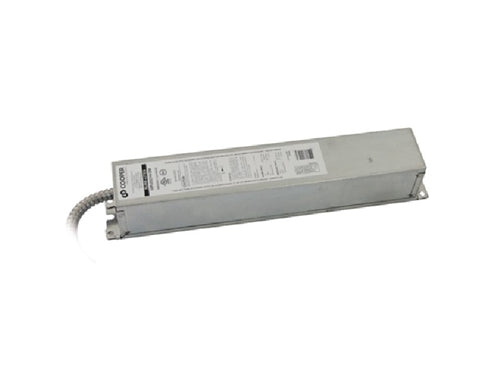

Sure Lites EBPLEDC1HV-20W 20W Emergency LED Driver, High Voltage
Sure Lites EBPLEDC1HV-20W 20W Emergency LED Driver, High Voltage
Regular price
Price:
$429.83
Regular price
Price:
Sale price
$429.83
Unit price
per
Ordering a Large Quantity?
Request a quote
description
PRODUCT SPECIFICATIONS
UL Listed for US and Canada
UL Listed for US and Canada
Listed to UL924 and tested to CSA 22.2 No. 141
For Field or Factory Installation (Indoor and Damp)
Illumination Time
Minimum 90 Minutes
Initial Light Output
Up to 2600 Lumens
Universal Input Voltage
120-277 VAC, 50/60 Hz
AC Input Power Voltage
8.5 W Maximum
Output Current and Voltage
EBPLEDC1HV-20W 0.16A-0.10A 125V-200V
EBPLEDC1LV-20W 1A-0.50A 20V-50V (Class 2)
Output Power
20 W (initial)
Test Switch / Charging Indicator Light
Test Button Indicator Light (TBIL)
Battery
High-Temperature, Maintenance-Free
Nickel-Cadmium Battery
7- to 10-Year Life Expectancy
Recharge Time
24 Hours
Temperature Rating
Ambient : 0°C to +50°C (32°F to 122°F)
Case: Tc (max): 65°C

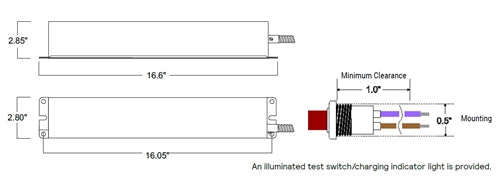

Dimensions
16.6” x 2.8” x 2.85” (422 mm x 71 mm x 73 mm)
2’ (610 mm) Flexible Conduit
Mounting Center 16.05” (408mm)
Weight
7.1 lbs. (3.22 kg)
Installation
The EBPLEDC1 operates an LED load of up to 20.0 W at nominal battery voltage for a minimum of 90 minutes.
Application
EBPLEDC1 is UL Listed and can be used for normal and emergency options.
Suitable for Indoor and Damp Locations.
Compliance
Five-year limited warranty
For Field or Factory Installation (Indoor and Damp)
Illumination Time
Minimum 90 Minutes
Initial Light Output
Up to 2600 Lumens
Universal Input Voltage
120-277 VAC, 50/60 Hz
AC Input Power Voltage
8.5 W Maximum
Output Current and Voltage
EBPLEDC1HV-20W 0.16A-0.10A 125V-200V
EBPLEDC1LV-20W 1A-0.50A 20V-50V (Class 2)
Output Power
20 W (initial)
Test Switch / Charging Indicator Light
Test Button Indicator Light (TBIL)
Battery
High-Temperature, Maintenance-Free
Nickel-Cadmium Battery
7- to 10-Year Life Expectancy
Recharge Time
24 Hours
Temperature Rating
Ambient : 0°C to +50°C (32°F to 122°F)
Case: Tc (max): 65°C
Dimensions
16.6” x 2.8” x 2.85” (422 mm x 71 mm x 73 mm)
2’ (610 mm) Flexible Conduit
Mounting Center 16.05” (408mm)
Weight
7.1 lbs. (3.22 kg)
Installation
-
The EBPLEDC1 does not affect normal fixture operation and may be used with either a switched or unswitched fixture
-
If a switched fixture is used, an unswitched hot lead must be connected to the emergency driver
-
The emergency driver must be fed from the same branch circuit as the AC driver
- Installation is not recommended with fixtures where the ambient temperature may fall below 0° C.
-
It operates at a reduced lumen output for a minimum of 90 minutes
-
When AC power fails, the EBPLEDC1 immediately switches to the emergency mode
-
As soon as the AC power is restored, the emergency driver automatically returns to the charging mode
-
Compatible with LED products with 20 to 50 (LV) or 125 to 200 (HV) VDC operation.
The EBPLEDC1 operates an LED load of up to 20.0 W at nominal battery voltage for a minimum of 90 minutes.
Application
EBPLEDC1 is UL Listed and can be used for normal and emergency options.
Suitable for Indoor and Damp Locations.
Compliance
- T20 Compliant.
- ROHS Compliant
- UL1310 and CSA 22.2 damp location listed for both factory or field installation
- *For detailed information regarding standards and code compliance for emergency lighting see product page or the Codes and Standards section on the web site.
Five-year limited warranty
