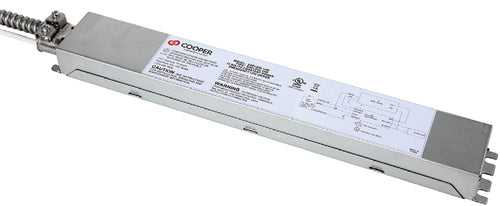

Sure Lites EBPLEDL14W 14W LED Emergency Battery Pack, 90 Minutes Run Time
Sure Lites EBPLEDL14W 14W LED Emergency Battery Pack, 90 Minutes Run Time
Regular price
Price:
$195.86
Regular price
Price:
Sale price
$195.86
Unit price
per
Ordering a Large Quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
Electronic
PRODUCT FAMILY SPECIFICATIONS
Electronic
Electronic
- Universal 120VAC~277VAC 50/60Hz input
- Compatible with LED fixtures
- Constant power output provides illumination to fixture for 90 minutes
- Class 2 output, auto adjusts to the following voltage ranges ensuring compatibility with a wide range
-
LED fixtures:
- EBPLEDL7W = 8V to 55V
- EBPLEDL14W = 16V to 55V
-
Constant power output:
- EBPLEDL7W = 7 watts
- EBPLED14W= 14 watts
- Low-voltage disconnect protects battery life
- Electronic battery disconnect to prevent unwanted cycling during the construction phase
- 00C to 550C operation
-

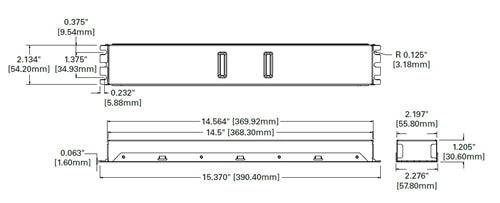

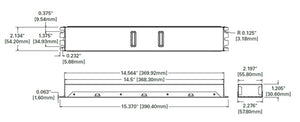

Steel housing
- EBPLED7W = 10.06 inches
- EBPLED14W = 14.56 inches
- Test button indicator light rated for IP65 protection against dust and water protection
- Plenum rated test button cable
- Lead wires and 24" flexible metallic conduit provided
- Sealed LiFePO4 battery
- Maintenance-free, Long-life
- Full Recharge Time, 24 hours (max.)
- Provides 90 minutes of emergency power
PRODUCT FAMILY SPECIFICATIONS
Electronic
- Universal 120VAC~277VAC 50/60Hz input
- Compatible with LED fixtures
- Constant power output provides illumination to fixture for 90 minutes
- Class 2 output, auto adjusts to the following voltage ranges ensuring compatibility with a wide range
-
LED fixtures:
- EBPLEDL7W = 8V to 55V
- EBPLEDL14W = 16V to 55V
-
Constant power output:
- EBPLEDL7W = 7 watts
- EBPLED14W= 14 watts
- Low-voltage disconnect protects battery life
- Electronic battery disconnect to prevent unwanted cycling during the construction phase
- 00C to 550C operation
-
Steel housing
- EBPLED7W = 10.06 inches
- EBPLED14W = 14.56 inches
- Test button indicator light rated for IP65 protection against dust and water protection
- Plenum rated test button cable
- Lead wires and 24" flexible metallic conduit provided
- Sealed LiFePO4 battery
- Maintenance-free, Long-life
- Full Recharge Time, 24 hours (max.)
- Provides 90 minutes of emergency power
- Five-year limited warranty
- UL 924 Classified
- Life Safety NFPA 101
- NEC/OSHA
- Most State and Local Codes
- California Energy Code
- The test button/light indicator is shipped disconnected from the emergency battery pack to prevent battery discharge during storage and installation.
- Note: Once the test button is connected and A/C power is turned on, disconnecting the test button will no longer prevent the battery from discharging in Emergency Mode when A/C power is lost.
- When the test button is connected, the emergency battery pack will function as intended, providing 90 minutes of emergency power when A/C power is lost.
- If the room is decommissioned for an extended period of time and there is a need to disconnect the battery, press and hold the test button for 5 seconds or until the battery stops discharging while the emergency battery pack is in Emergency Mode.
- This will prevent the battery from discharging in Emergency Mode. The battery will automatically reengage once AC power is restored.
- The red indicator light provides visual assurance the emergency battery pack is operational and connected to A/C power.
- Suitable for use in plenum, damp locations, recessed type IC and enclosed and gasketed LED luminaires
- Five-year limited warranty
- UL 924 Classified
- Life Safety NFPA 101
- NEC/OSHA
- Most State and Local Codes
- California Energy Code
- The test button/light indicator is shipped disconnected from the emergency battery pack to prevent battery discharge during storage and installation.
- Note: Once the test button is connected and A/C power is turned on, disconnecting the test button will no longer prevent the battery from discharging in Emergency Mode when A/C power is lost.
- When the test button is connected, the emergency battery pack will function as intended, providing 90 minutes of emergency power when A/C power is lost.
- If the room is decommissioned for an extended period of time and there is a need to disconnect the battery, press and hold the test button for 5 seconds or until the battery stops discharging while the emergency battery pack is in Emergency Mode.
- This will prevent the battery from discharging in Emergency Mode. The battery will automatically reengage once AC power is restored.
- The red indicator light provides visual assurance the emergency battery pack is operational and connected to A/C power.
- Suitable for use in plenum, damp locations, recessed type IC and enclosed and gasketed LED luminaires
