Sure Lites EUR62G LED Edge Lit Exit Sign, Recessed Mount, AC Only, Double Face Mirror, Green Letter, Anodized Aluminum

Sure Lites EUR62G LED Edge Lit Exit Sign, Recessed Mount, AC Only, Double Face Mirror, Green Letter, Anodized Aluminum

Price: $224.40
Price: $224.40

MODEL: Sure-Lites-EUR62G
Add To Wishlist
Request a Quote
Ordering a Large Quantity? Request a quote
View full details

description

PRODUCT FAMILY DESCRIPTIONS
Illumination Source Data
  • No maintenance, low power LED sources
  • Long-life LEDs provide diffuse illumination of exit face
  • Emergency illumination provided by LED lamps in battery backup mode
Electrical
  • Dual Voltage Input 120/277 VAC, 60Hz
  • Solid-state Voltage Limited Charger
  • Solid-state Switching
  • Brownout Circuit
  • Low-Voltage Disconnect
  • Overload/Short Circuit Protection
  • Test Switch/Power Indicator Light
Housing Construction
  • Anodized aluminum housing
  • Black powder coat painted diecast canopy provided
  • EUS series exit can be universally surface mounted, ceiling, wall, or end

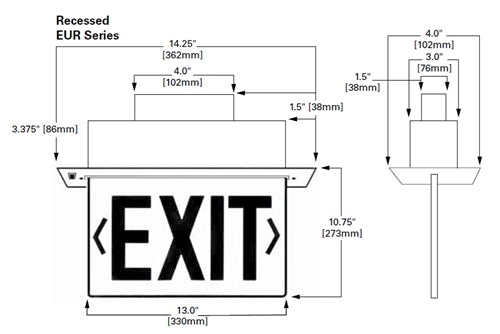

  • EUR series exit is recessed mounted with below ceiling access
Lens Panel
  • Injection molded from impact-resistant clear acrylic
  • Single face lens available with a clear background
  • All double face lens come standard with a mirror background
  • Universal, field-installable chevrons provided in red or green for universal configuration based on the directional needs
  • Edge reflector further enhances visibility
Solid-State Charger
  • 120/277 VAC, voltage regulated solid-state charger
  • High charge rate immediately following power restoration of AC current after a power failure
  • Charge circuit reacts to the condition of the battery and regulates the charging process in order to maintain peak battery capacity and maximize battery life
  • Solid-state construction recharges the battery following a power failure in accordance with UL 924
Brownout Circuit
  • Monitors the flow of AC current
  • Activates the emergency lighting system when a predetermined reduction/dip of AC power occurs (a dip in voltage will cause most ballasted products to extinguish, causing loss of normal lighting even though a total power failure has not occurred)
Test Switch/Power Indicator Light
  • Switch located on the side of the exit permits the activation of the emergency circuit for complete operational systems check
  • Indicator light provides visual assurance that the AC power is on
Battery
  • Sealed Nickel Cadmium (Self-Powered exits only)
  • Maintenance-Free, Long-Life
  • Full Recharge Time, 24 hrs. (max.)
  • 0°C to 50°C operating temperature
Code Compliance
  • UL 924 Damp Location Listed
  • Life Safety NFPA 101
  • NEC/OSHA
Warranty
  • 5-year product warranty
  • 7-year prorated battery warranty
