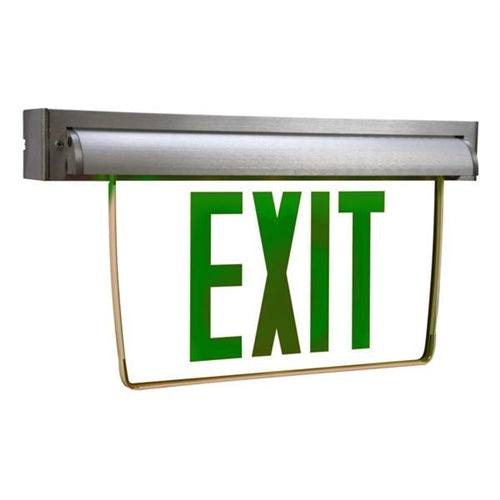

Sure Lites EUX72G Self-Powered Mount Edge Lit LED Exit Sign with Battery Back-Up, Double Face, Green Exit Color, Brushed Aluminum Housing, No Self-Diagnostics

Sure Lites EUX72G Self-Powered Mount Edge Lit LED Exit Sign with Battery Back-Up, Double Face, Green Exit Color, Brushed Aluminum Housing, No Self-Diagnostics

Price: $391.09
Price: $391.09

MODEL: Sure-Lites-EUX72G

Usually Ships in 4-6 business days. Urgent Project? Contact Us
Add To Wishlist
Request a Quote
Ordering a large quantity?Request a quote
View full details

description

PRODUCT FAMILY SPECIFICATIONS
Electrical
  • Dual Voltage Input, 120/277 VAC, 60 Hz
  • EZ key external battery disconnect
  • 10°C to 40°C (50°F to 104°F) operating range
  • Self-Diagnostic System option
  • Long life LED light source
  • Fully recharged in 24 hours
  • Solid-state Voltage Limited Charger
  • Solid-state Switching
  • Brownout Circuit
  • Low-Voltage Disconnect
  • Overload/Short Circuit Protection
  • Test Switch/Power Indicator Light
  • Photocell Test Switch (requires accessory laser for activation)
  • Two circuit (-2C) option available for AC only
  • Fire alarm interface (FAI) option available for selfpowered
Battery
  • Sealed nickel cadmium
  • Maintenance-free
  • 24-hour full recharge time
Housing Construction
  • All aluminum housing
  • All mounting options are standard: surface, recessed, end, ceiling and wall
  • Available in brushed aluminum, white or black
  • Halo Got Nail hangar bars included for recessed applications
  • Convenient 1/2" knockouts on top and end of fixture
  • Mullion mount option available for all versions (-MUL)
  • Trim/Lens for Universal
  • High impact acrylic panel
  • Available with red or green letters
  • Single and double sided lenses included
  • Clear, mirror insert and white insert options included
  • Field installed and NFPA 101 compliant chevron directional indicators included
  • No Tools required for “snap-in” installation
  • Pre-specified chevron lens kits available for an enhanced aesthetic
Trim/Lens Kit for Single or Double
  • High impact acrylic panel
  • Available with red or green letters
  • Clear, mirror insert, and white insert options included
  • Field configurable for single (61,71) or double (62,72) sided
  • Field installed and NFPA 101 compliant chevron directional indicators included
  • No tools required for "snap-in" construction
Warranty
  • Fixture: 5-year
  • Battery: 7-year pro-rata
