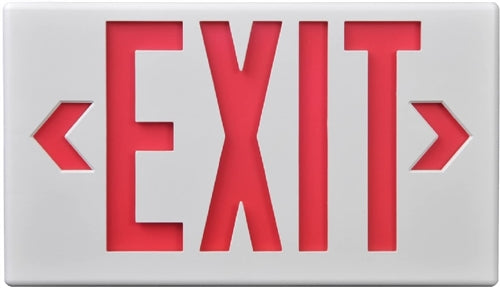

• Sure-Lites LPX7 LED Commercial Exit, White Housing, Universal Face, Red and Green Letters, Self-Powered
1 1

Sure-Lites LPX7 LED Commercial Exit, White Housing, Universal Face, Red and Green Letters, Self-Powered

Sure-Lites LPX7 LED Commercial Exit, White Housing, Universal Face, Red and Green Letters, Self-Powered

Price: $58.49
Price: $58.49

MODEL: Sure-Lites-LPX7

Usually Ships in 4-6 business days. Urgent Project? Contact Us
Add To Wishlist
Request a Quote
Ordering a large quantity?Request a quote
View full details

description

PRODUCT DESCRIPTION
The LPX series is a UL 924 code compliant solution for exit requirements and the self-powered version is designed to operate for a minimum of
90 minutes during a power outage. Features include a polycarbonate housing, LED source for the exit letters, as well as a labor saving selfdiagnostic option that automatically performs required NFPA testing. The exit is field configurable for either red or green letters. The LED sources and nickel cadmium battery require no maintenance.

PRODUCT SPECIFICATIONS
Electrical
  • General Features
    • Field selected red and green sign capability standard on all units (units shipped red, field convert to green with supplied parts).
    • Dual Voltage Input 120/277 VAC, 60Hz
  • AC Only
    • Optional 2C (Two circuit, FTBR) available in 120/277 VAC in standard and emergency operation
  • Self Powered
    • Sure-Lites EZ Key patented external battery disconnect feature -- prevents unnecessary battery drainage, saves on installation time
    • Solid-state Voltage Limited Charger
    • Brownout Circuit
    • Low-Voltage Disconnect
    • Test Switch/Power Indicator Light
    • Standard 24 hour recharge time (max)
    • Self-Diagnostic feature available as option
    • DLVP enabled with field installable kit
Housing Construction
  • All components are injection molded, color stable, high impact UL 94-5VA rated polycarbonate material
  • White or black textured finish standard
  • Components are of snap-fit construction to facilitate under
5-minute installation
  • Reinforcing ribs throughout to provide maximum strength
  • Molded-in wireways facilitate internal wire routing and connections
  • All components including battery and electronics are located inside the exit housing
  • Snap-out or snap-in chevron directional indicators have full 3/4" stroke
  • Knockout provided on housing for surface attachment
  • Universal exits can be field configured as single face or double face
  • Snap-fit canopy with captive mounting screws included with all exits
  • Exit can be ceiling, wall, or end mounted
  • Universal J-box mounting pattern
Lamp Data
  • AC LED: Red and green LED lamps provide uniform diffused illumination
  • DC: Red and green LED DC lamps (Brighter in emergency mode)
Code Compliance
  • UL 924 Listed
  • UL Damp Location (0-40¡ C)
  • Life Safety NFPA 101
  • NEC/OSHA
  • Most State and Local Codes
  • Suitable for Floor Proximity
Installation
  • UL Listed for 2C (FTBR)
Warranty
  • 5 year product warranty
  • 7 year pro-rated battery warranty
