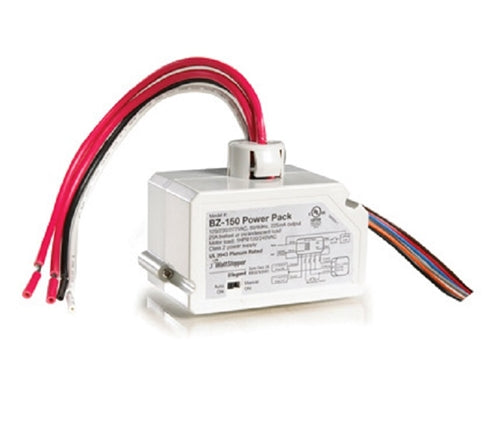

Wattstopper BZ-150 Power Pack, 120-277V, 50/60Hz, 24VDC, 225mA, with Auto-On/Manual
Wattstopper BZ-150 Power Pack, 120-277V, 50/60Hz, 24VDC, 225mA, with Auto-On/Manual
Regular price
Price:
$47.50
Regular price
Price:
Sale price
$47.50
Unit price
per
MODEL: Wattstopper-BZ-150
Usually Ships in 3-5 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT SPECIFICATIONS
The BZ-150 Universal Voltage Power Pack can provide 24 VDC operating voltage to Wattstopper’s low voltage occupancy sensors. In addition, the BZ-150 enables manual-on, hold-on, hold-off and load shed applications when used with lighting control panels or building management systems. This device is constructed with environmentally friendly materials and is RoHS-compliant.
PRODUCT FEATURES
The BZ-150 Universal Voltage Power Pack can provide 24 VDC operating voltage to Wattstopper’s low voltage occupancy sensors. In addition, the BZ-150 enables manual-on, hold-on, hold-off and load shed applications when used with lighting control panels or building management systems. This device is constructed with environmentally friendly materials and is RoHS-compliant.
PRODUCT FEATURES
- Self-contained power supply relay system
- Efficient switching power supply providing optimized current output based on number of sensors
- LED indicates status of relay or if there is a low-voltage overcurrent
- Hold-on and hold-off inputs integrate with BMS, lighting control panels & other building systems
- Integrates with low-voltage momentary switch to control any 24VDC occupancy sensor
- The product meets the materials restrictions of RoHS
- Provides auto-on or manual-on field-selectable operating mode
PRODUCT SPECIFICATIONS
- 120/277VAC, 230/240V (single phase), 50/60Hz voltage input
- Load Requirements
- Ballast, Incandescent: 20amp @120/277VAC
- Eballast: 16amp @277VAC
- Motor: 1HP @120/240VAC
- Output: 225mA @24VDC (with relay connected)
- Low-voltage leads are rated for 300 volts
- UL-rated 94 V-O gray plastic enclosure
- Dimensions: 1.6" x 2.75" x 1.6 (40.6mm x 69.9mm x 40.6mm) H x W x D with a 1/2" (12.7mm) snap-in nipple
- UL and cUL listed
- Five year warranty
