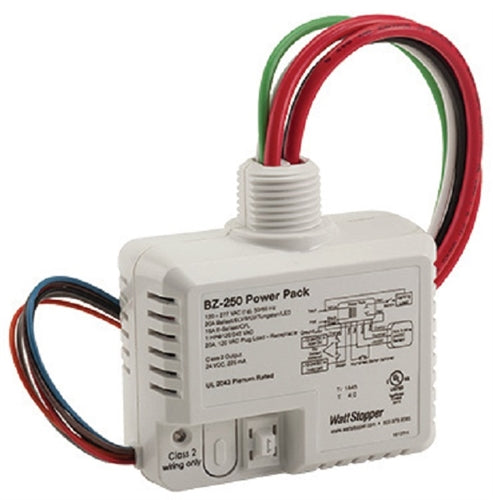

Wattstopper BZ-250 Power Pack, 120-277V, 50/60Hz, 24VDC, 225mA, with Auto/ Manual
Wattstopper BZ-250 Power Pack, 120-277V, 50/60Hz, 24VDC, 225mA, with Auto/ Manual
Regular price
Price:
$61.78
Regular price
Price:
Sale price
$61.78
Unit price
per
MODEL: Wattstopper-BZ-250
Usually Ships in 3-5 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT SPECIFICATIONS
The BZ-250 power pack switches lighting or plug loads On and Off in response to low voltage control inputs, and provides up to 225mA at 24VDC to power Wattstopper occupancy sensors. It enables Manual-On sequences of operation, as well as HoldOn, Hold-Off and load shed applications when used with lighting control panels or building automation systems. This device is constructed with environmentally friendly materials and is RoHS-compliant.
PRODUCT FEATURES
PRODUCT SPECIFICATIONS
The BZ-250 power pack switches lighting or plug loads On and Off in response to low voltage control inputs, and provides up to 225mA at 24VDC to power Wattstopper occupancy sensors. It enables Manual-On sequences of operation, as well as HoldOn, Hold-Off and load shed applications when used with lighting control panels or building automation systems. This device is constructed with environmentally friendly materials and is RoHS-compliant.
PRODUCT FEATURES
- High-efficiency, plenum-rated switching power supply
- Hold-On and Hold-Off inputs
- Mechanically held latching relay with selectable power loss operation: On, Off, or last state
- Load On/Off button to verify wiring
- Auto-On or Manual-On operation for code compliance
- Zero crossing and for reliability and increased product life
- Low voltage over current protection
PRODUCT SPECIFICATIONS
- Input/output voltage:120-277VAC or 120-347VAC, 50/60Hz
- Secondary output: 24VDC, 225mA
- Low-voltage leads rated for 300 volts
- UL-rated 94 V-O plastic enclosure
- Power up options: On, Off, previous state
- Operating conditions: -4 to 131F (-20 to 55C); 5-95% RH, non condensing
- Dimensions: 1.5" x 3" x 2.4" (37mm x 77mm x 61mm) H x W x D with .6" L (15mm) threaded nipple
- UL and cUL listed : UL244A, UL508 and C22.2 No. 14-10
-
Five year warranty
