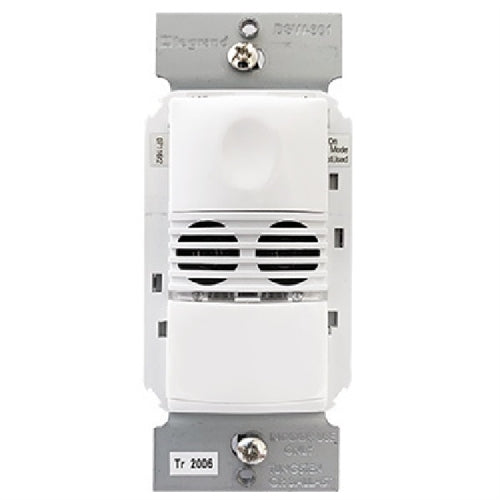

Wattstopper DSW-301-W Dual Tech Wall Switch Occupancy Sensor, 120/277V, White
Wattstopper DSW-301-W Dual Tech Wall Switch Occupancy Sensor, 120/277V, White
Regular price
Price:
$83.28
Regular price
Price:
Sale price
$83.28
Unit price
per
MODEL: Wattstopper-DSW-301-W
Usually Ships in 3-5 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT DESCRIPTION
The DSW-301 dual technology wall switch sensor turns lights OFF and ON based on occupancy. It combines the benefits of passive infrared (PIR) and ultrasonic detection technologies. The DSW-301 replaces existing wall switches and fits behind a standard decorator wall plate.
PRODUCT FEATURES
PRODUCT SPECIFICATIONS
The DSW-301 dual technology wall switch sensor turns lights OFF and ON based on occupancy. It combines the benefits of passive infrared (PIR) and ultrasonic detection technologies. The DSW-301 replaces existing wall switches and fits behind a standard decorator wall plate.
PRODUCT FEATURES
- Zero-crossing for long relay life
- Vandal resistant lens combines precise coverage with durability
- Selectable walk-through mode turns lights off three minutes after initial occupancy if no motion is detected after the first 30 seconds
- Test mode allows quick and easy adjustments
- Selectable audible alert for impending shutoff
- In automatic mode, sensor returns automatically to Auto-ON after lights are turned off manually; ideal for presentations
- Four occupancy logic options to customize control to meet application needs
PRODUCT SPECIFICATIONS
- DSW-301: 120/240/240/277VAC; 50/60Hz, 1/4 hp
- @ 120VAC, 0-1000W ballast, LED, and tungsten
- @ 240/240/277VAC, 0-1200W ballast and LED
- DSW-301-347: 347VAC; 50/60Hz, 1/4 hp; 0-1500W ballast and LED
- Time delays: 5, 15 or 30 minutes, walk-through, testmode/20 minutes
- Sensitivity adjustment: PIR (high/low), Ultrasonic (fully variable)
- Coverage:
- Major motion, PIR 35' x 30', Ultrasonic 20' x 20'
- Minor motion, PIR 20 x 15', Ultrasonic 15' x 15'
- Dimensions (L x W x D): 2.73" x 1.75" x 1.81" (69mm x 44mm x 46mm)
- UL and cUL listed
- Five year warranty
