PRODUCT DESCRIPTION
The LMBC-300 Digital Network Bridge provides a segment network connection for a group of Digital Lighting Management (DLM) local network devices. This enables individual DLM local networks to be aggregated into a larger system, which, in turn, can be remotely managed from a Network Controller or a building automation system (BAS).
PRODUCT FEATURES
PRODUCT SPECIFICATIONS
The LMBC-300 Digital Network Bridge provides a segment network connection for a group of Digital Lighting Management (DLM) local network devices. This enables individual DLM local networks to be aggregated into a larger system, which, in turn, can be remotely managed from a Network Controller or a building automation system (BAS).
PRODUCT FEATURES
- Component of Digital Lighting Management integrated control systems
- Communicates all DLM local network data and device settings to a Network Controller and is compatible with DLM software
- Easy integration with BAS through use of standard BACnet objects to represent DLM local network device settings and states
- Adds segment network functionality a to DLM local network
- Class 2 operation and plenum rated housing facilitate simple installation
- DIN rail mounting bracket provided with the unit to facilitate box or panel mounting
- UL 2043 plenum rated
- This product meets the materials restrictions of RoHS
- BAA/TAA-compliant models available
PRODUCT SPECIFICATIONS
- Operating voltage: 24VDC from DLM local network
- Current consumption: 30mA

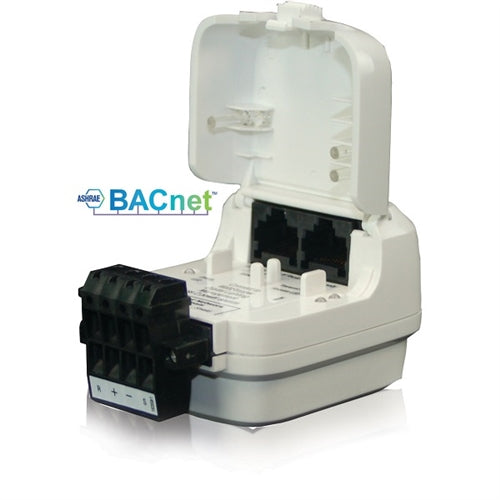

- DLM local network connection: 2 RJ45 ports
- Removable in and out terminal block for twisted pair DLM segment network connection
- Segment network parameters:
- Wattstopper LM-MSTP wire rated for BACnet MS/TP (RS485)
- Linear topology; 4000' maximum per segment
- Up to 40 local room networks, or up to 340 DLM devices
- DIN rail mounting plate provided with the unit for cabinet or panel mounting
- Status LEDs indicate normal operation
- Operating conditions: for indoor use only; 32-158°F (0-70°C); 0-95% RH, non-condensing
- UL and cUL listed (E101196)
- FCC part 15 compliant
- Five year warranty
