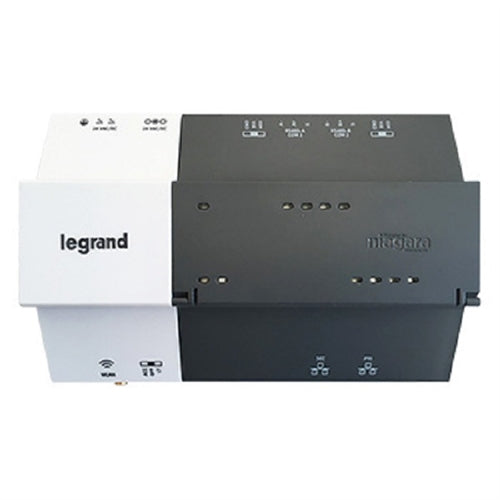

Wattstopper LMJA-8300-SM Network Controller N4.9 JACE8000 with DLM Segment Manager Station, Max 300 Rooms

PRODUCT DESCRIPTION
The LMJA-8xxx-SM is a Network Controller designed to communicate with Wired and Wireless DLM Network Bridges, for local in-room wired networks and/or LMCP panels. It provides control, monitoring, adjustment, and standard or Human Centric Lighting (HCL) scheduling functionality for networked DLM systems. The Network Supervisor is a PC server running similar software designed to coordinate control of multiple LMJA-8xxx-SMs and store historical data.

PRODUCT FEATURES

• Communicates all DLM local network data and device information via the Wired or Wireless Room to Room (or Segment) Network
• Browser-based UI uses SSL industry standard communications and can be accessed via direct TCP/IP connection, local LAN or via the Internet
• Create standard and Blanco-based HCL lighting schedules. Schedules may be repeating seven day, calendar event based or astronomic control
• Integration with BAS standard BACnet objects to represent DLM
• Adjusts scheduling of normal and after hours • Allows remote changes to occupancy sensor and daylighting sensor settings in real time
• Allows real time current monitoring of rooms and groups when using load controllers with current monitoring circuitry (e.g. LMRC-11x, LMRC-61x, LMPL-11x, LMPL-61x)

PRODUCT SPECIFICATIONS

• Operating Voltage: 24VAC (24VA dedicated transformer) required, with neither side of the transformer secondary tied to ground -OR- 24VDC capable of supplying at least 1A (50/60 Hz)
• Power: UL Listed Class 2, 24 VAC transform, rated @ minimum 24VA, or use with NB-PS1 (24VDC, 1A (24W) wallmount AC power adapter with barrel connector plug (9.5mm L x 5.5mm OD x 2.1mm ID))
• Processor/RAM: TI AM3352: 1000MHz ARM Cortex-A8 / 1GB DDR3 SDRAM / Removable micro-SD card with 4GB flash total storage/2GB user storage
• Din Rail Mount: 35mm x 7.5mm with end clips
• Ports / Wiring Connections: 2 each Ethernet ports, 10/100-Mbit, RJ-45, 2ea. RS485 ports, Earth ground and 24V power input
• Dimensions, W x H x D: 4.6" x 10.3" x 2.4"
• Weight: 1.1 lb (499g)
• Ambient operating temperature: -4°F - 140°F (-20°C - 60°C)
• Storage temperature: -40°F - 185°F (-40°C - 85°C)
• Altitude limitations: Indoor use only, altitude to 6,562 ft. (2,000m)
• Certification: UL916, C-UL, CE, FCC, and RoHS
• Warranty: 1 year
