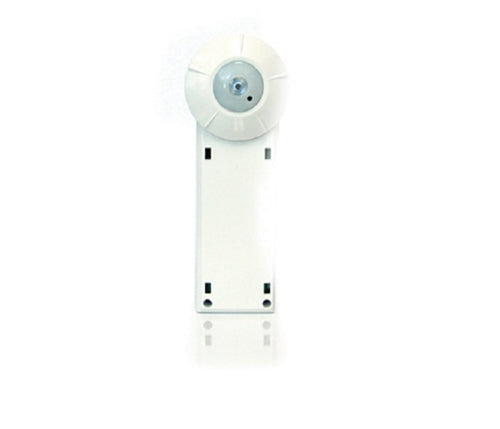

Wattstopper LMLS-400-L Closed Loop Single Zone DLM Photosensor with Extended Tube
Wattstopper LMLS-400-L Closed Loop Single Zone DLM Photosensor with Extended Tube
Regular price
Price:
$251.91
Regular price
Price:
Sale price
$251.91
Unit price
per
MODEL: Wattstopper-LMLS-400-L
Usually Ships in 3-5 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT DESCRIPTION
The LMLS-400 is a closed loop photosensor that measures the ambient light level in order to automatically switch or dim one zone of lighting. It is part of a Digital Lighting Management (DLM) system and sends light level signals to control loads connected to DLM on/off or dimming room controllers. The LMLS-400 has a photodiode with an extended range of 1-1,553.
PRODUCT FEATURES
The LMLS-400 is a closed loop photosensor that measures the ambient light level in order to automatically switch or dim one zone of lighting. It is part of a Digital Lighting Management (DLM) system and sends light level signals to control loads connected to DLM on/off or dimming room controllers. The LMLS-400 has a photodiode with an extended range of 1-1,553.
PRODUCT FEATURES
- Daylight responsive on/off, bi-level, tri-level or dimming control for one lighting zone
- Extended tube model accommodates thicker ceiling materials
- 100 degree spatial response for optimal detection of ambient light level
- Automatic calibration and configuration; optional hold off setting to maximize energy savings
- Photodiode corrected to match the photopic response of the human eye
- Can be calibrated in any daylight condition
- Input voltage: 24VDC from DLM local network
- Current consumption: 7mA
- DLM local network connection: 1 RJ45 port
- Digital multi-band photodiode with extended range: 1–1,553 fc (10–16,716 lux)
- Spatial response: 100 degrees
- LED status and configuration indicators
- Infrared (IR) transceiver
- Weight: 1.4 oz (40 g)
- Operating conditions: for indoor use only; 32–131 degrees F (0–55 degrees C); less than 90% RH, non-condensing
- UL and cUL listed
- FCC part 15 compliant
- Five year warranty
Download PDF Specification Share your knowledge of this product. Be the first to write a review »
