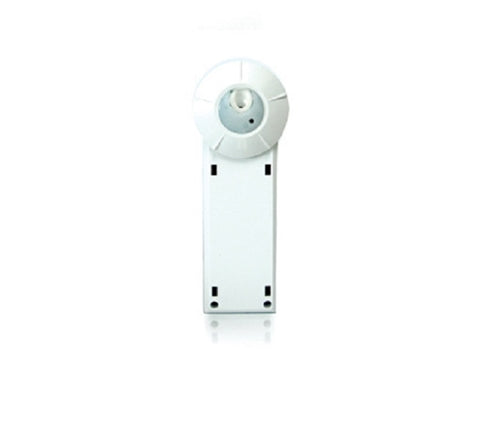

Wattstopper LMLS-500-L DLM Open Loop Multi Zone Dimming or On/Off Photosensor with Long Neck
Wattstopper LMLS-500-L DLM Open Loop Multi Zone Dimming or On/Off Photosensor with Long Neck
Regular price
Price:
$352.48
Regular price
Price:
Sale price
$352.48
Unit price
per
MODEL: Wattstopper-LMLS-500-L
Usually Ships in 3-5 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT DESCRIPTION
The LMLS-500 is an open loop, multi-zone photosensor that measures the daylight contribution in order to automatically switch or dim up to three zones of lighting. It is part of a Digital Lighting Management (DLM) system and sends light level signals to control loads connected to DLM on/off or dimming room controllers.
PRODUCT FEATURES
The LMLS-500 is an open loop, multi-zone photosensor that measures the daylight contribution in order to automatically switch or dim up to three zones of lighting. It is part of a Digital Lighting Management (DLM) system and sends light level signals to control loads connected to DLM on/off or dimming room controllers.
PRODUCT FEATURES
- Digital Lighting Management components plug together on a free-topology Cat 5e DLM local network
- Test mode override of programmed time delay allows easy verification of selected settings
- Load status verification allows confirmation and testing of controlled load
- Infrared (IR) transceiver for wireless configuration and control
- Compatible with DLM wall switches for manual override, if desired
- LED status indicators
- Mounting options for toplit or sidelit applications
- Input voltage: 24VDC from DLM local network
- Current consumption: 7mA
- DLM local network connection: 1 RJ45 port
- Digital multi-band photodiode with extended range: 1-1,500 fc (10–16,145 lux)
- Spatial response: 60 degrees
- LED status and configuration indicators
- Infrared (IR) transceiver
- Weight: 1.4 oz (40 g)
- Operating conditions: for indoor use only; 32-131 degrees F (0-55 degrees C); less than 90% RH, non-condensing
- UL and cUL listed
- FCC part 15 compliant
- Five year warranty
Download PDF Specification Share your knowledge of this product. Be the first to write a review »
