Wattstopper LMLS-600 LM Dual Loop Switching and Dimming Photosensor, On/Off/Dimming, 1 Channel
Wattstopper LMLS-600 LM Dual Loop Switching and Dimming Photosensor, On/Off/Dimming, 1 Channel
Regular price
Price:
$397.74
Regular price
Price:
Sale price
$397.74
Unit price
per
MODEL: Wattstopper-LMLS-600
Usually Ships in 3-5 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT DESCRIPTION
The LMLS-600 is a dual loop photosensor that automatically switches or dims one zone of lighting based on ambient light and daylight levels. It has two silicon photodiodes with an extended range of 1–10,000 footcandles (fc) and features photopic correction to mimic the human eye’s perception of daylight. The LMLS-600 is part of a Digital Lighting Management (DLM) system and sends light level signals to control loads connected to DLM on/off or dimming room controllers.
PRODUCT FEATURES
The LMLS-600 is a dual loop photosensor that automatically switches or dims one zone of lighting based on ambient light and daylight levels. It has two silicon photodiodes with an extended range of 1–10,000 footcandles (fc) and features photopic correction to mimic the human eye’s perception of daylight. The LMLS-600 is part of a Digital Lighting Management (DLM) system and sends light level signals to control loads connected to DLM on/off or dimming room controllers.
PRODUCT FEATURES
- Single zone photosensor for top-lit switching and dimming applications
- Combines strengths of open loop and closed loop daylighting control in one product

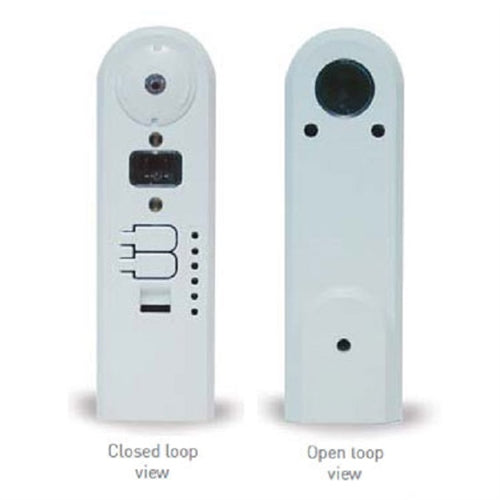

- Selectable 30° or 70° closed loop spatial response, 60° open loop spatial response for optimal detection of light levels
- Automatic calibration and configuration
- Shown to save 52% more energy than open loop daylighting control system
- Photodiodes corrected to match the photopic response of the human eye
- Input voltage: 24 VDC from DLM local network
- Current consumption: 7 mA
- DLM local network connection: 1 RJ45 port
- Digital multi-band photosensor range: 1–10,000 fc (10–107,000 lux)
- Spatial response:
- Closed loop, selectable 70º or 30º
- Open loop, 60º
- LED status and configuration indicators
- Infrared (IR) transceiver
- Weight: 1.1 oz (31 g)
- Operating conditions: for indoor use only; 32–131F (0–55C); less than 90% RH, non-condensing
- UL and cUL listed
- FCC part 15 compliant
- Five year warranty
