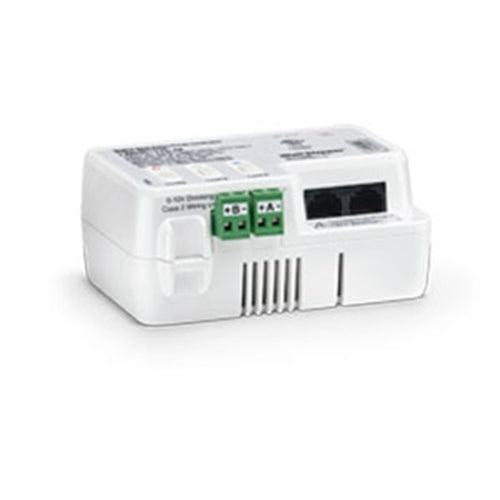

Wattstopper LMRC-111-16M DLM 1-Relay Room Controller, 0-10V, 16A Metered

PRODUCT DESCRIPTION
LMRC-111-16M room controllers include one relay capable of switching a 16 amp load, a high-efficiency intelligent switching power supply and both Class 1 and Class 2 0-10 volt outputs for control of dimmable loads including compatible LED drivers or electronic ballasts. Room Controllers are the foundation of a Digital Lighting Management (DLM) system, and allow integration of occupancy sensors, daylighting controls and switches for energy-efficient control.

PRODUCT FEATURES

• Plenum-rated controllers with line voltage relay and 0–10 volt dimming output
• Knockout mounting for easy installation; Class 1 and/or Class 2 connection for 0–10V wiring
• Advanced real time metering of voltage and current (+/- 2% accuracy)
• Plug n' Go automatic configuration for quick installation and maximum energy efficiency
• Store 16 scene preset levels for each load
• Over-current protection: relay closes to prevent device damage in an over-current situation.
• Supports energy saving manual-on, partial-on and dimming control strategies

Color	White
Product Series	LMRC
Type	Room Controller
Finish	Glossy
Application Sector	Commercial
Product Line	Wattstopper
Country Of Origin	China
Replaced by Part Number	LMRC-111-20M
Installation Location	Ceiling
Warranty Type	5-Year
Standard	UL 924, UL 60730, UL 2043, cUL, FCC part 15, PEP, RoHS 2011/65/EC, ISO 14025:2010, ISO 14001
RoHS Compliant	This product meets the material restrictions of Article 4 of the RoHS Directive (2011/65/EU), including Commission Delegated Directive 2015/863.
Current Draw	16 A
Number of Connections	4
Topology	Free Topology
Wire Connection Type	RJ-45, Terminal Block
Dimming Compatibility	0-10 V
Compatibility	DLM Wired
Has Battery	No
Indoor/Outdoor	Indoor
Input Voltage	120/277 VAC
Line Frequency	50 Hz, 60 Hz
Mounting Type	1/2 in Knockout, 4 in Deep J-Box
Number of Relays	1
Operating Temperature	0°-65°C, 32°-149°F
Operating Temperature Max	149 °F
Operating Temperature Min	32 °F
Operating Humidity	5-95% RH (Non-Condensing)
Output Voltage	24 VDC
Storage Temperature	23° - 176° F
